TC Legend Typical House

TC Legend Typical House

Ted & Jake did some virtual conference speaking last summer.

The subject was how to build an affordable Net Zero home. The Built Green footage is here: ­­­­­Videos | TC Legend Homes,  and the NW Eco Build footage should be along shortly.

The principles are simple. Here are the notes:

Design

Simple, rectangular footprint, Conforming to the formula for the Pacific Northwest the rectangular footprint is; 1.6 units long on south wall, 1 unit deep east and west walls. No wiggles or bump-outs as they increase cost and reduce energy efficiency. The long side faces south to harvest winter passive solar heat. Short east and west sides are minimized to reduce exposure to hot, low angle sun.

Formula for glazing. To avoid overheating during summer, large east and west facing widows are avoided. South-side glazing is heavily preferred as there we can shade the hot, high summertime sun with eaves and shades, yet allow the low wintertime solar heat to enter.

Daylighting. Rooms needing great daylight: kitchen, dining room, etc. are located on the south side behind the plentiful south windows.

The low-light-requirement rooms: mechanical rooms, bathrooms, staircases etc. are to the north.

Correctly sized clerestory windows can bring daylight deep within the interior of the house.

Pitched roof. A huge south roof, pitching to the south collects solar power from roof-mounted PV panels. Often the south roof is asymmetrically large, to create space for the maximum number of PV panels, achieving Net Positive and powering an electric car. This is a new aesthetic – Environmental Modernism!

Right sized rooms: Interior spaces and rooms that are exactly big enough to thrive within, but no bigger. Well placed exterior doors access the outside when you need more space.

Energy modeling. Modeling the building during the design process ensures it’s on-track to meet Net Zero, and allows precise evaluation of the cost/ energy advantages of the various construction components, including the HRV.

We use the WSU component performance worksheet. It’s a free excel spreadsheet, specific to WA state.

Detail: Post & beam structure.  Fine-finished structural posts and beams enrich the interior at low cost, and allow easy remodel as no interior walls are loadbearing.

Detail: Slab-on grade. Fine finishing the concrete slab-on-grade floor gives a modern, durable interior at low cost. Not compulsory though, the slab can be covered with engineered floating floors.

Site selection

Flat lot: Lower construction costs by avoiding steep lots with expensive retaining walls, excavation, soils trucking and geotechnical involvement.

Utilities: Power, water, sanitary drainage/ septic, driveways. Utilities can cost over $80K to install on remote rural lots. The ideal lot has all the utilities stubbed-out in the street or on-site.

Solar exposure: An ideal site would have a clear sky to the south, down to the horizon so the building can harvest low, wintertime passive solar heat. If there were deciduous trees to the east and west, those trees could shade the east and west walls / windows in summertime but allow valuable winter light to penetrate once the leaves have all fallen off!

Critical Areas: Water in all forms is heavily protected in Washington State. The presence of wetlands, streams, lakes and ocean all add to the complexity and cost to build.

Construction

SIPs panel construction: Highly insulated R29 walls, R49 roof are fast to build and are inherently very air-tight. The thick roof panels span far and make vaulted roof space as standard.

ICF formed stemwalls: Insulating the stem-walls adds R24 below grade, preventing the building from leaking heat at the slab edge.

4” under-slab foam: R20 foam below the slab as standard.

Triple Pane windows: Standard.

Mechanical

Heat recovery ventilator (HRV): Delivering fresh air is essential in super-sealed modern buildings. HRV ventilators recover over 90% of outgoing heat, whist providing constant fresh exterior air, filtered to HEPA standards with particulates removed.

Heat pump. Electric air-to-air (Fujitsu), or air-to-water (Chilltrix) heatpumps are highly efficient and provide cold air conditioning in addition to heating.

Concrete floor: The slab-on grade is inside the energy shell (above the 4” R20 foam) and serves as a thermal heatsink; storing the house’s warmth, or cool, within the concrete. Protecting the heatpump from short-cycling and preventing temperature swings, even during a multi-day power-outage.

Energy star appliances: As standard.

Solar panels: As standard to achieve net zero, or net positive if an electric car will be driven.

How $200/ square foot?

The economics are made possible because the house is explicitly designed to achieve net zero and to cost $200/sf. The shell, mechanicals and living quality are best-of-breed, the finishes are durable, solid materials, and modest.

There is an economical point (~1200sf) where the house has to become two story to remain in this cost bracket.

Small houses below 1500sf cost closer to $250/ sf as the basic elements (heating, kitchen, bathroom, etc.) all still have to be present and are not reduced as the floorplan reduces.

$200/ sf is possible (for a NetZero house with solar installed) with a 2,000sf house.

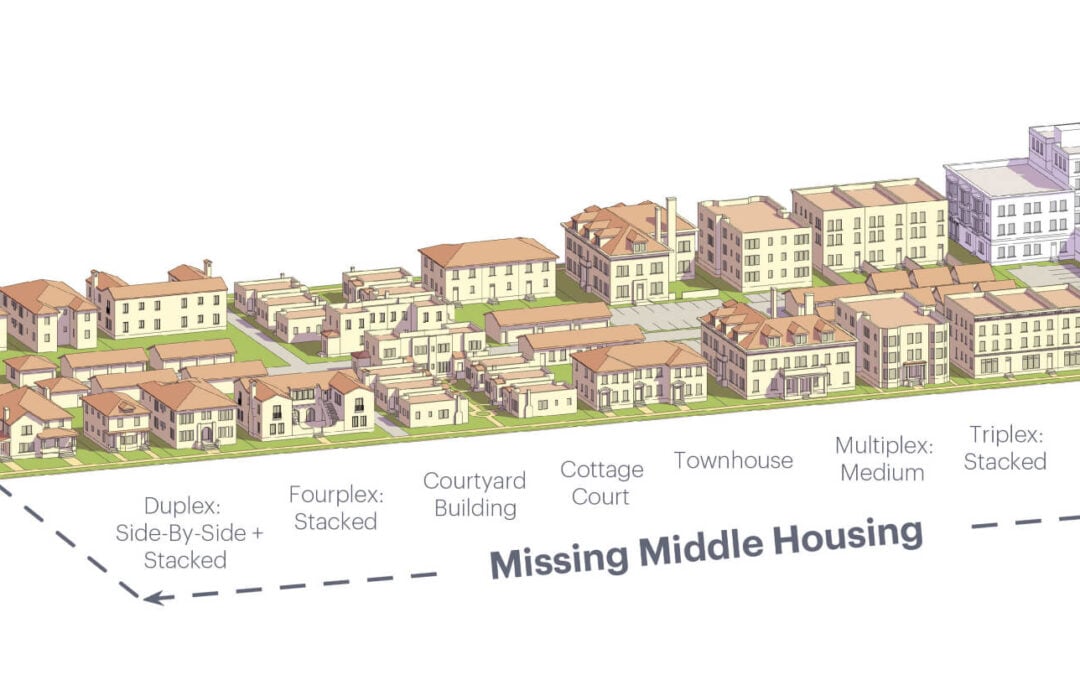

If you want a small (e.g. 800sf) NetZero house for $200/ sf: Think about duplexing with your friends, triplex, multiplex! Co-housing……..

zero energy plans

TC Legend Homes Wins 2020 Built Green Hammer Award

TC Legend Homes Wins 2020 Built Green Hammer Award

We are excited to announce that the TC Legend Homes Everson Farmhouse has been awarded the 2020 Built Green Hammer Award winner in the category of Built Green Project of the Year!

The Built Green Hammer Awards recognize Built Green members in King and Snohomish counties for their outstanding projects and participation from the previous year.

Ted & Jake received the award virtually at the 2020 Virtual Built Green Conference on September 17, after giving a stellar presentation on “The theory, practice and details TC Legend Homes uses to design and build affordable Net Zero housing for the Pacific Northwest.”

“We’re really very happy to have been granted this prestigious award. Thank you all at BuiltGreen for the recognition. You guys at BuiltGreen work hard & we work hard at TC Legend Homes and we feel that together we can make a real difference to the future built environment.” – Jake Evans

Great job TC Legend Homes team!

Further Details:

  • Built Green 5 star certified,
  • HER rating of -19 (with P.V.)
  • Department of Energy certified Zero Energy Ready Home.
