Built by the TC Legend Homes/Powerhouse Designs team. We design and build. With a standard palette of materials & details that have been chosen, tested & refined over many houses, there is no confusion for the crew. The draftsman, engineer, and crew are consistent through all our projects, so everyone has done this system before.
Key Features:
-
Positive Energy – produces enough electricity to also power an electric car.
-
Energy Star, EPA Indoor airPLUS, and 5-Star Built Green Certified.
-
Honorable Mention in the Affordable Category of the 2018 US Department of Energy Housing Innovation Awards.
-
The home is oriented for both passive & active solar performance by facing south, as a rectangle with the long side (26’) running from east to west. The home is outfitted with an 8.1kw photovoltaic system.
-
Energy envelope includes structural insulated panels (SIPs). The 6.5″ Neopor R29 SIPs panel walls are locally made in Washington. Designed & engineered to reduce cold bridging by minimizing structural lumber & maximizing use of foam splines to connect panels. Shell is air sealed with triple beads of mastic at all joints and panels additionally taped at all joints. RIM joist insulated with R30 spray-foam at floor systems. Perfect rectangle box adds simplicity to construction & reduces corners & thus cost & air leakage.
-
4″ Extruded Polystyrene (EPS), a low VOC foam (R20), is used under-slab. The concrete slab-on-grade is exposed and is effectively a free finished-floor and a functioning thermal mass.
-
The heat recovery ventilator (HRV) is a Zehnder Comfo-air 200 which can scavenge 95% of the heat from the outgoing dirty air. Running through a class 4 filter (merv7/8) at between 29 and 118 cubic feet/ minute (cfm), the unit ventilates the whole house, extracting moist air from bathrooms/utility spaces, bringing fresh air into living spaces.
-
Energy Star appliances including a Geospring 50-gallon heat pump-powered hot water heater.
-
Stormwater from the roofs is infiltrated on-site using splash blocks below the gutter downspouts.
-

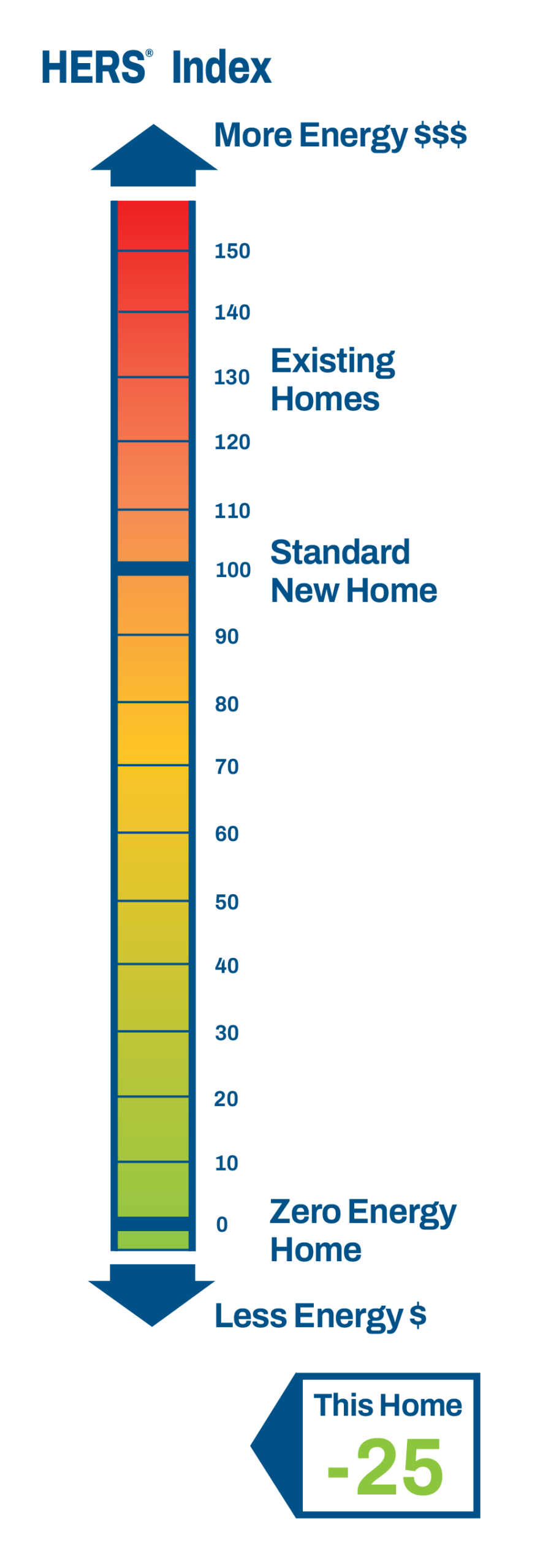

Home Energy Rating System (HERS) Index is negative 25! (A typical new home has a rating of + 62.)
